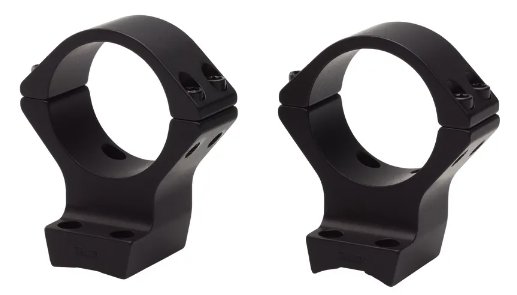

Browning 12511 is the matte, Intermediate (medium), 30 mm X-Bolt Integrated Scope Mount. The ring and base are machined as one 7000-series aluminum unit so there is no separate ring-to-base joint to walk.

Intermediate height is about .500"—Browning’s pick for objectives up to about 50 mm on a standard barrel. Four X-Lock screws per base locate the mount at all four corners. X-Bolt and X-Bolt 2 only.

• Manufacturer: Browning
• MPN / SKU: 12511
• UPC: 023614047889
• Fits: X-Bolt / X-Bolt 2 only
• Tube: 30 mm
• Height: Intermediate / medium (~.500")
• Finish: Matte
• Material: 7000-series aluminum, two-piece integrated
• Listed weight: 6.4 oz (Browning spec table)
