Warrior Systems Legionary 22 – .22 LR Direct-Thread Suppressor (3012105)

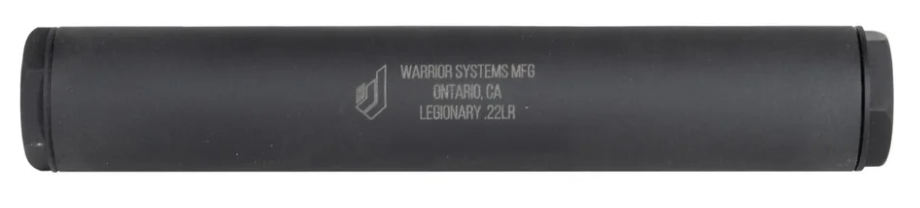

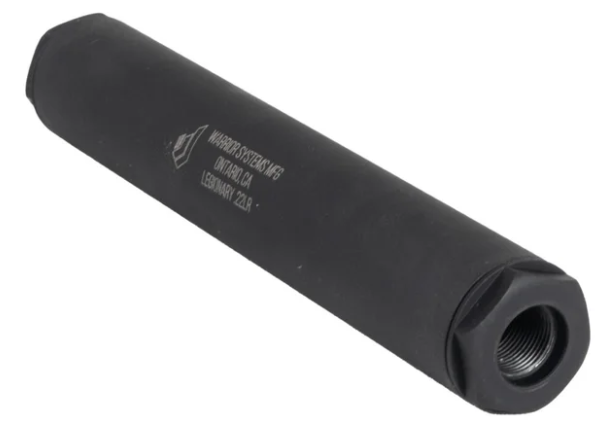

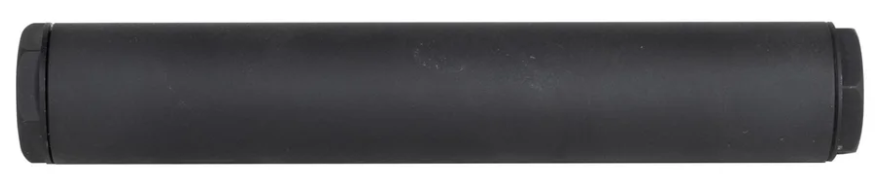

The Legionary 22 is Warrior Systems Manufacturing's .22 LR suppressor: 1/2x28 direct thread, 1-inch diameter, Type III hardcoat anodized black, fully user-serviceable, with a baffle stack that is not timed. This listing is this .22 can only. Warrior Systems part 3012105, UPC 810099631821.

Built for .22 LR

Warrior Systems' Legionary 22 introduction describes a can engineered around .22 LR rifles and pistols rather than scaled down from a larger design. Published figures on that page: approximately 3.5 ounces, 1-inch diameter, 6061-T6 aluminum, Type III hardcoat anodized black. Average noise reduction 27 dB; Warrior Systems publishes a reduced level of 114.10 dB on .22 LR.

Direct Thread 1/2x28

Mount is 1/2x28 direct thread. Confirm the host barrel matches that pitch and that the threads are concentric to the bore before you install it. This listing is this .22 LR Legionary 22, part 3012105, only.

User-Serviceable, Not Timed

Warrior Systems publishes the Legionary 22 as fully user-serviceable. The baffle stack is not timed, so it comes apart for cleaning without an alignment clock on reassembly. Cleaning is recommended after approximately 300 rounds.

What's Included

• Legionary 22 suppressor
• Direct thread end cap
• 7/8 wrench
• Instruction manual

Warrior Systems Legionary 22 Specifications

Frequently Asked Questions

What thread pitch is it?
Direct thread 1/2x28. The host barrel has to match.

Can I take it apart to clean?
Yes. Warrior Systems publishes it as fully user-serviceable with a baffle stack that is not timed, and recommends cleaning after approximately 300 rounds.

What caliber is this listing?
This listing is the Legionary 22, this .22 LR can, part 3012105 only.

Is this an NFA item?
Yes. This suppressor transfers on an ATF Form 4. This listing is the Legionary 22, this .22 can, 3012105 only.
